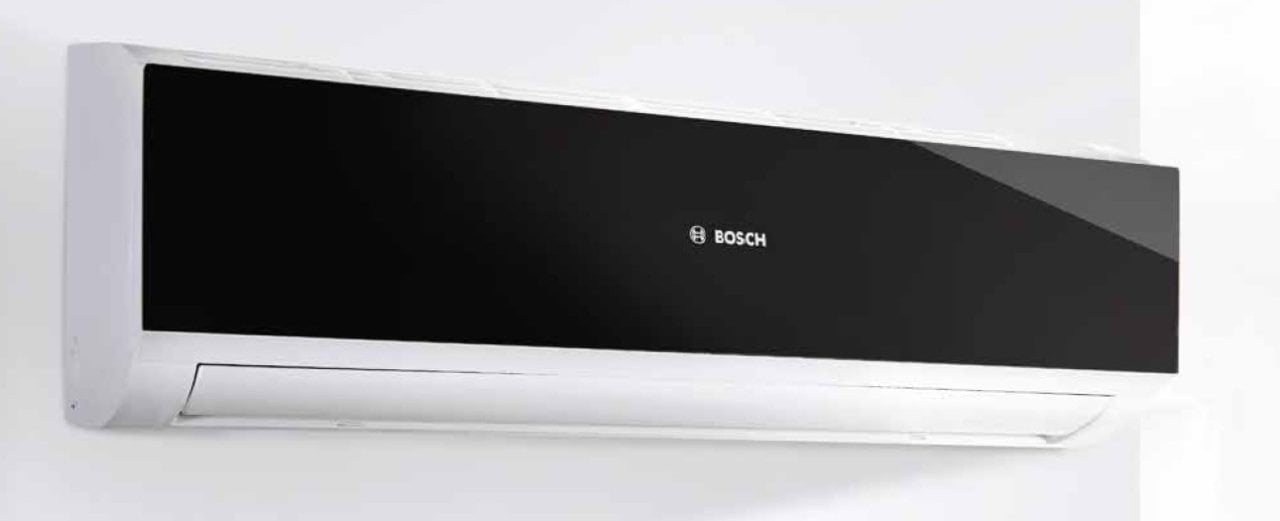

ASI/O12XB30U-12000 BTU A++ İNVERTER KLİMA-R 32
|
BOSCH |
B1ZMIA12505 |
||
|
Power supply |
Ph-V-Hz |
220-240V,1Ph,50Hz |
|
|
Rated Cooling |
Capacity |
Btu/h |
12000（8643~13477) |
|
Cooling Power input |
|
W |
1406（130~1274) |
|
Cooling Current |
|
A |
6.11（0.6~5.4) |
|
Rated Heating |
Capacity |
Btu/h |
13000（4752~15142) |
|
Heating Power input |
|
W |
1209（150~1282) |
|
Heating Current |
|
A |
5.25（0.6~5.5) |
|
Seasonal Cooling |
Pdesignc |
kW |
3.5 |
|
SEER |
W/W |
6.1 |
|
|
Energy Efficiency Class |
|
A++ |
|
|
Heating(Average ) |
Pdesignh |
kW |
2.6 |
|
SCOP |
W/W |
4.0 |
|
|
Energy Efficiency Class |
|
A+ |
|
|
Tbiv |
℃ |
-7 |
|
|
Tol |
℃ |
-15 |
|
|
Moisture Removal |
L/h |
/ |
|
|
Max. input consumption |
W |
2300 |
|
|
Max. current |
A |
10 |
|
|
Starting current |
A |
---- |
|
|
Compressor |
Model |
|
KSK103D33UEZ3 |
|
Type |
|
/ |
|
|
Brand |
|
GMCC |
|
|
Capacity |
Btu/h |
3250 |
|
|
Input |
W |
834 |
|
|
Rated current(RLA) |
A |
5,7 |
|
|
Locked rotor Amp(LRA) |
A |
---- |
|
|
Thermal protector |
|
---- |
|
|
Thermal protector position |
|
---- |
|
|
Capacitor |
uF |
---- |
|
|
Refrigerant oil/oil charge |
ml |
ESTEL OIL VG74/310ml |
|
|
Indoor fan motor |
Model |
|
YKFG-13-4-38L-4 |
|
Output |
W |
40.0 |
|
|
Capacitor |
uF |
1.2 |
|
|
Speed(Hi/Mi/Lo) |
r/min |
1150/950/750 |
|
|
Indoor coil |
a.Number of rows |
|
2 |
|
b.Tube pitch(a)x row pitch(b) |
mm |
19.5x11.6 |
|
|
c.Fin spacing |
mm |
1.2 |
|
|
d.Fin type (code) |
|
Hydrophilic aluminum |
|
|
e.Tube outside dia.and type |
mm |
Ф5,/ |
|
|
f.Coil length x height x width |
mm |
595x78x23.2+595x117x23.2+595x78x23.2 |
|
|
g.Number of circuits |
|
4 |
|
|
Indoor air flow (Hi/Mi/Lo) |
m3/h |
540/430/314 |
|
|
Indoor sound pressure level (Hi/Mi/Lo/Si) |
dB(A) |
41/36/26.5 |
|
|
Indoor sound power level (Hi) |
dB(A) |
52 |
|
|
Indoor unit |
Dimension(W*D*H) |
mm |
805x194x285 |
|
Packing (W*D*H) |
mm |
870x270x365 |
|
|
Net/Gross weight |
Kg |
7.6/9.8 |
|
|
Outdoor fan motor |
Model |
|
ZKFN-20-8-1 |
|
Output |
W |
55 |
|
|
Capacitor |
uF |
― |
|
|
Speed |
r/min |
800/600 |
|
|
Outdoor coil |
a.Number of rows |
|
1 |
|
b.Tube pitch(a)x row pitch(b) |
mm |
21x22 |
|
|
c.Fin spacing |
mm |
1.3 |
|
|
d.Fin type (code) |
|
Hydrophilic aluminum |
|
|
e.Tube outside dia.and type |
mm |
Φ7,Inner groove tube |
|
|
f.Coil length x height x width |
mm |
740x462x22 |
|
|
g.Number of circuits |
|
2 |
|
|
Outdoor air flow |
m3/h |
1800 |
|
|
Outdoor sound pressure level |
dB(A) |
56 |
|
|
Outdoor sound power level |
dB(A) |
62 |
|
|
Outdoor unit |
Dimension(W*D*H) |
mm |
720x270x495 |
|
Packing (W*D*H) |
mm |
835x300x540 |
|
|
Net/Gross weight |
Kg |
22.8/24.7 |
|
|
Refrigerant |
Type |
|
R32 |
|
GWP |
|
2088 |
|
|
Charged quantity |
Kg |
0.7 |
|
|
Design pressure |
MPa |
4.2/1.5 |
|
|
Refrigerant piping |
Liquid side/ Gas side |
mm(inch) |
Φ6.35(1/4")/Φ9.52/(3/8") |
|
Max. refrigerant pipe length |
m |
25 |
|
|
Max. difference in level |
m |
10 |
|
|
Connection wiring |
|
5*1.5(Optional) |
|
|
Plug type |
|
-- |
|
|
Thermostat type |
|
Remote Control |
|
|
Operation temperature |
Indoor(cooling/ heating) |
℃ |
17～32/0～30 |
|
Outdoor(cooling/heating) |
℃ |
-15～50/-15～30 |
|
